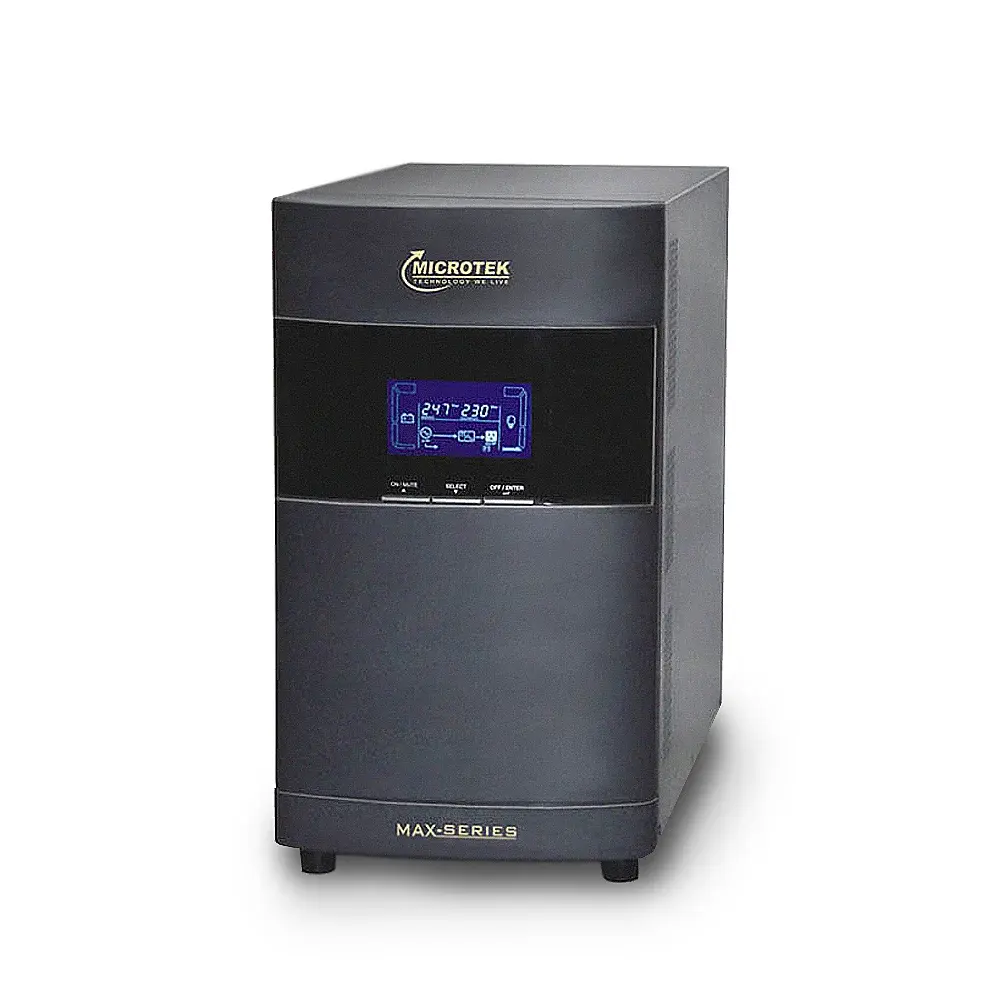

MICROTEK MAX+SERIES 2KVA/ 72 V

The Microtek Max+ 2 KVA / 72 V is a high-frequency, double-conversion online UPS with IGBT and microcontroller technology for stable and clean power. It runs on a 72 V DC battery bank (6 × 12 V SMF / VRLA). The UPS handles unstable mains with a wide input range (118–295 V) and supports smart battery charging even when the UPS is off. Key protections include overload, short-circuit, over-temperature, OVCD, and EMI/RFI noise filtering. Features include LCD display, RS-232/optional SNMP monitoring, static bypass, generator compatibility, selectable 50/60 Hz output, and optional isolation transformer.

Key Features

• True double-conversion online UPS

• High-frequency IGBT + microcontroller control

• 72 V DC battery bank (6 × 12 V)

• Wide input voltage range (118–295 V)

• Pure sine-wave output

• LCD display, RS-232, optional SNMP

• Overload, OVCD, over-temperature, EMI/RFI protection

• Static bypass and generator compatible

• Smart battery charging even when UPS is off

• Selectable output frequency (50/60 Hz)

Summary

The Microtek Max+ 2 KVA / 72 V UPS delivers reliable, uninterrupted power for critical loads such as servers, labs, ATMs, and network infrastructure. Its double-conversion design, robust protections, flexible battery management, and monitoring features make it ideal for business-critical applications.
