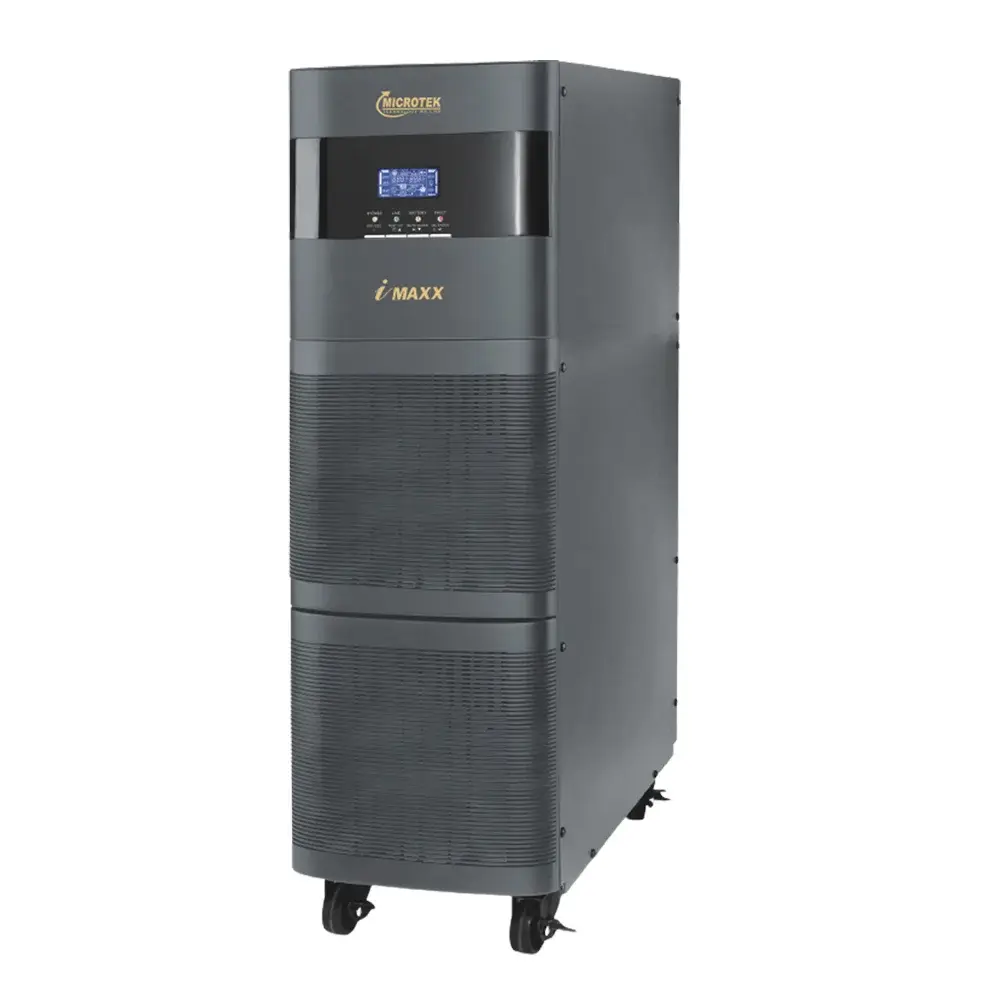

MICROTEK iMAXX SERIES 5.5 KVA/ 192 V

The Microtek iMAXX 5.5 KVA / 192 V is a transformer-based online UPS with DSP-controlled IGBT inverter for efficient, stable power. It features an inbuilt Over-Voltage Cut-Off Device (OVCD) with surge protection and a smart LCD to display real-time load, battery, AC/bypass modes, and faults. The UPS supports CVCF operation even without a battery and includes EMI/RFI noise filtering for cleaner output. It is generator-compatible and comes with both maintenance and static bypass. Battery support is for 16–18 SMF/VRLA batteries, with configurable charger current (2 A, 4 A, or 8 A). Communication options include RS‑232, USB, and optional SNMP.

Key Features

• DSP-based IGBT inverter for stable, efficient power

• Over-Voltage Cut-Off Device (OVCD) with surge protection

• Smart LCD panel displaying load, battery, and mode

• CVCF mode allows operation without a battery

• EMI / RFI noise filtering for cleaner output

• Supports 16–18 VRLA / SMF batteries

• Configurable charger current (2 / 4 / 8 A)

• Zero transfer time (AC to DC) and inverter-to-bypass

• Built-in static bypass and maintenance bypass

• Generator-compatible (needs ~2.5× UPS capacity)

• Optional SNMP monitoring card

• Conformal-coated PCB for harsh environments

Summary

The Microtek iMAXX 5.5 KVA / 192 V UPS is a robust, transformer-based online UPS designed for critical applications like data centers, telecom setups, server rooms, and labs. With DSP + IGBT technology, advanced protections, generator compatibility, and flexible communication options, it ensures reliable and clean power even under unstable mains conditions.
